S-700 Reservation！！

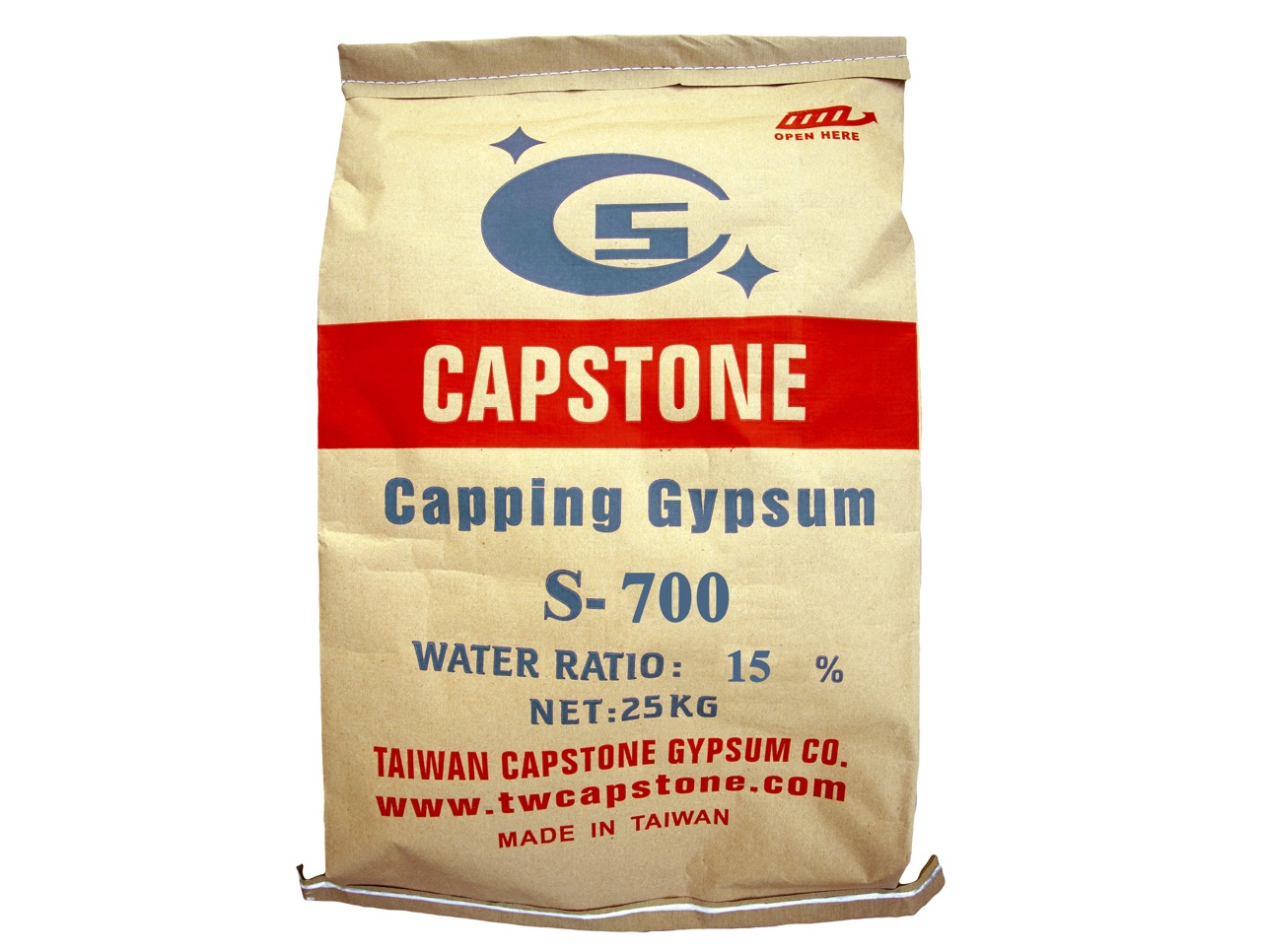

CAPSTONE S-700
Yes! We are ready!
For our highest grade S-700, please make a reservation.
It could satisfy with all most concrete test.
As our concrete capping gypsum, it also follows all worldwide standards such as: ASTM C617/AASHTO T 231 5.1.1.
The cubic test of Concrete capping S-700 shows below:
|
Cubic age when test |
Cubic length mm |
Cubic wide mm |
Maximum strength kgf |
Compression strength kgf/cm2 |
Compression strength Mpa |
Compression strength Psi |
|
40 mins |
50.25 |
50.36 |
21163 |
846.5 |
84.65 |
12277.44 |
|
45 mins |
50.31 |
50.50 |
19983 |
786.5 |
78.65 |
11407.22 |
|
50 mins |
50.28 |
50.13 |
21086 |
843.4 |
84.34 |
12232.48 |
|
Average strength |
|
|
|
825.5 |
82.6 |
11972.4 |
The average strength and standard deviation of capping gypsum S-700 and ground is shown below:
|
|
Concrete cylinder test by Capping gypsum S-700 Mpa (Psi) |
Concrete cylinder test by Ground Mpa (Psi) |
Ratio |
Criteria |
Pass/Fail |
|
The average strength of 15 pics concrete cylinder |
65.87 (9553.1) |
64.33 (9329.8) |
1.024 |
>0.98 Xc |
Pass |
|
The standard deviation of 15 pics concrete cylinder |
2.9 (420.6) |
3.07 (444.9) |
0.945 |
<1.57 |
Pass |
- The average strength of 15 cylinders capped with the materials is not less than 98 percent of the average strength of 15 companion cylinders capped with neat cement paste or 15 cylinders ground plane to within 0.002 in (0.05 mm). The test result of average strength is 1.024. It passed.
- The standard deviation of the strengths of the capped cylinders is not greater than 1.57, the test result is 0.945. It passed.
